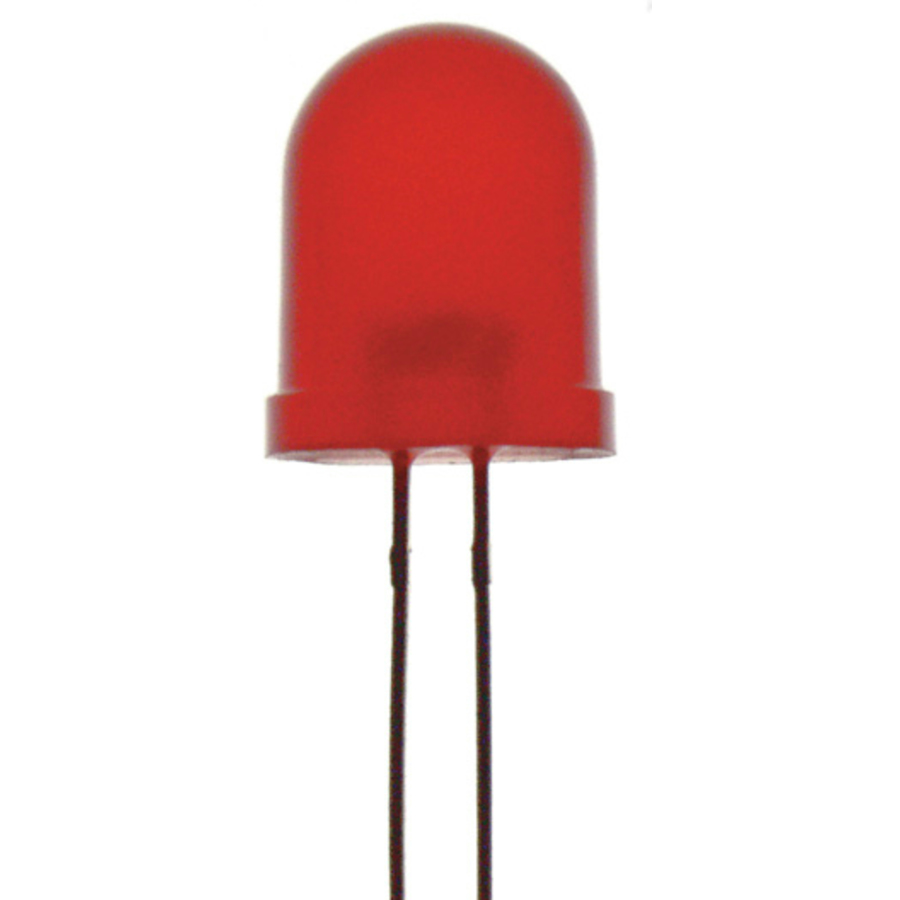

Red 5mm LED 8mcd Round Diffused
Red 5mm LED 8mcd Round Diffused

CAT. No. ZD0150

Red 5mm LED 8mcd Round Diffused
product image thumb

Red 5mm LED 8mcd Round Diffused

$0.75
Red 5mm light emitting diode 8mCd Round Diffused

Please call (02) 4782 6943

Description

LED

Red 5mm LED 8mCd Round Diffused

    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.5cm

    LED Components

    Light Colour
    		 Red
    Lens Type
    		 Diffused
    Light Wavelength
    		 700nm
    Viewing Angle
    		 50°
    Intensity
    		 8mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.3V
    Resistor for 12VDC
    		 470?
    Resistor for 9VDC
    		 330?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 5mm Standard LED
    Resistor for 5VDC
    		 130?

    Product Availability

    Availability
    		 Stocked item
