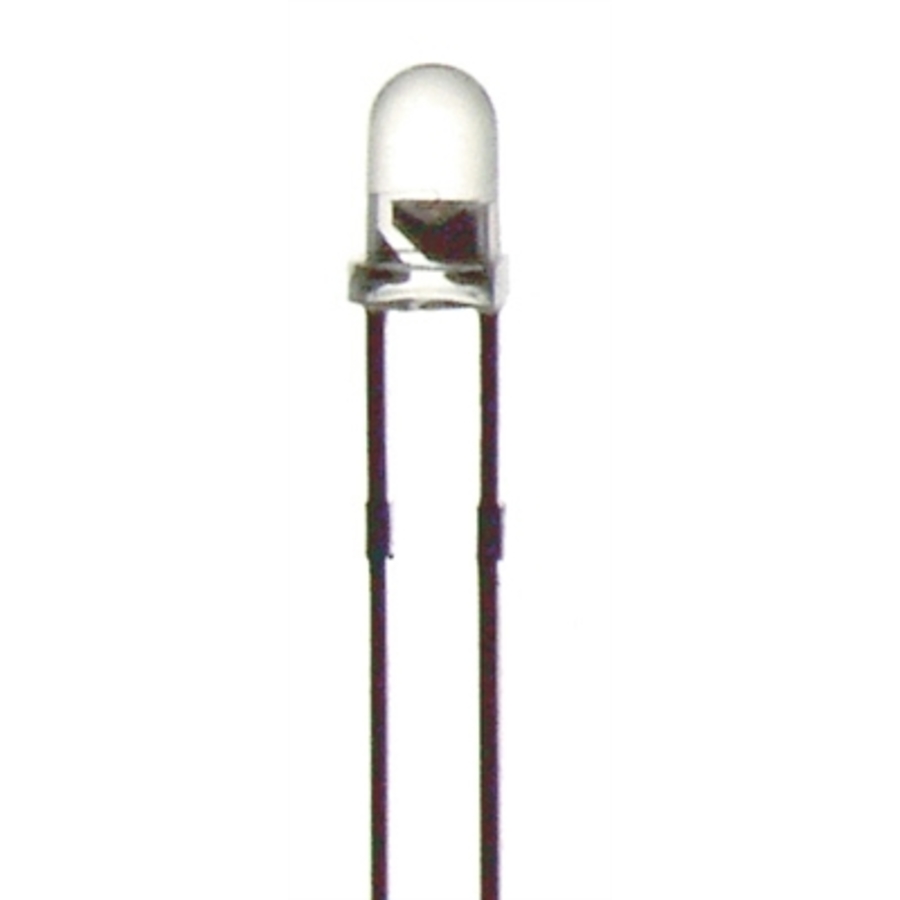

Yellow 5mm LED 12000mcd Round Clear
Yellow 5mm LED 12000mcd Round Clear

CAT. No. ZD0166

Yellow 5mm LED 12000mcd Round Clear
product image thumb

Yellow 5mm LED 12000mcd Round Clear

$1.75
Yellow 5mm light emitting diode 12000mCd Round Clear

Please call (02) 4782 6943

Description

LED

Yellow 5mm LED 12000mCd Round Clear

    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 0.6cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.00144l
    Packaged Height
    		 0.6cm

    LED Components

    Light Colour
    		 Yellow
    Lens Type
    		 waterclear
    Light Wavelength
    		 588nm
    Viewing Angle
    		 15°
    Intensity
    		 10500mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.3V
    Resistor for 12VDC
    		 470?
    Resistor for 9VDC
    		 330?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 50mA
    LED Type
    		 5mm Standard LED
    Resistor for 5VDC
    		 130?

    Product Availability

    Availability
    		 Stocked item
