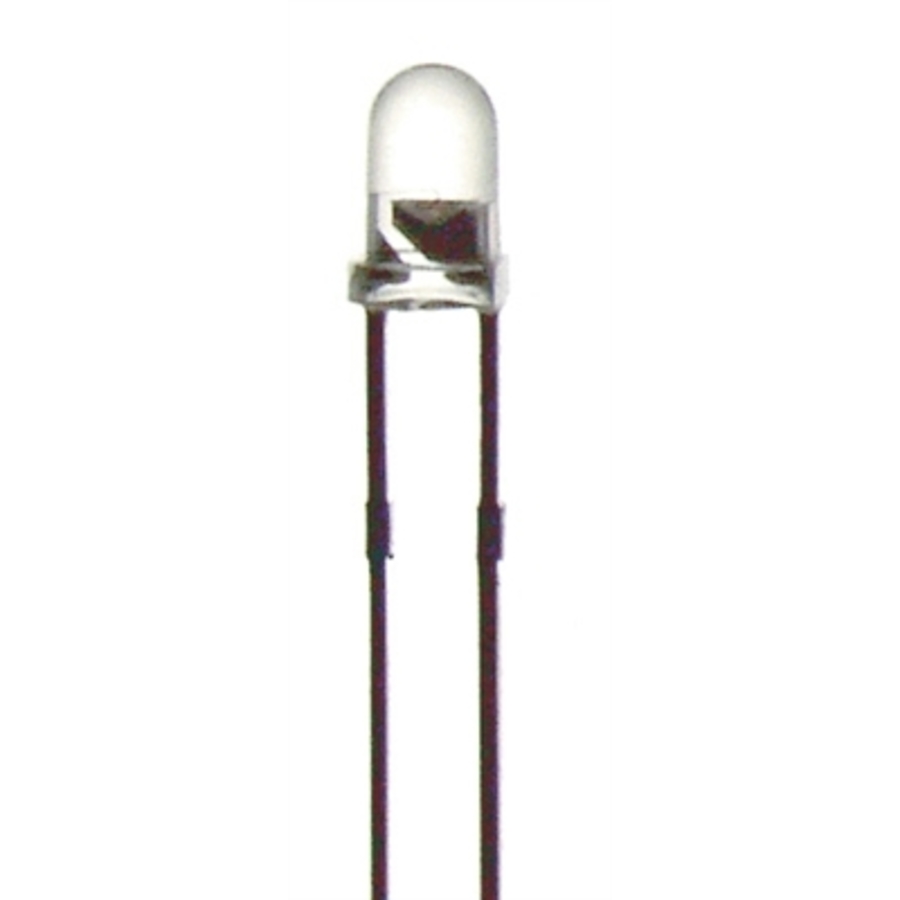

White 5mm LED 33000mcd Round Clear
White 5mm LED 33000mcd Round Clear

CAT. No. ZD0196

White 5mm LED 33000mcd Round Clear
product image thumb

White 5mm LED 33000mcd Round Clear

$2.95
White light emitting diode in 5mm Clear at 33000MCD brightness.

Please call (02) 4782 6943

Description

LED

White LED 5mm Clear 33000MCD

    Specifications

    LED Components

    Light Colour
    		 White
    Lens Type
    		 waterclear
    Viewing Angle
    		 20°
    Intensity
    		 33000mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 30mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.2V
    Resistor for 12VDC
    		 270?
    Resistor for 9VDC
    		 180?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 100mA
    LED Type
    		 5mm Standard LED
    Resistor for 5VDC
    		 56?

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 2 count
    component package
    		 radial
    Active connector type
    		 Solder Legs

    Product Dimensions

    Diameter
    		 5mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 3.5cm
