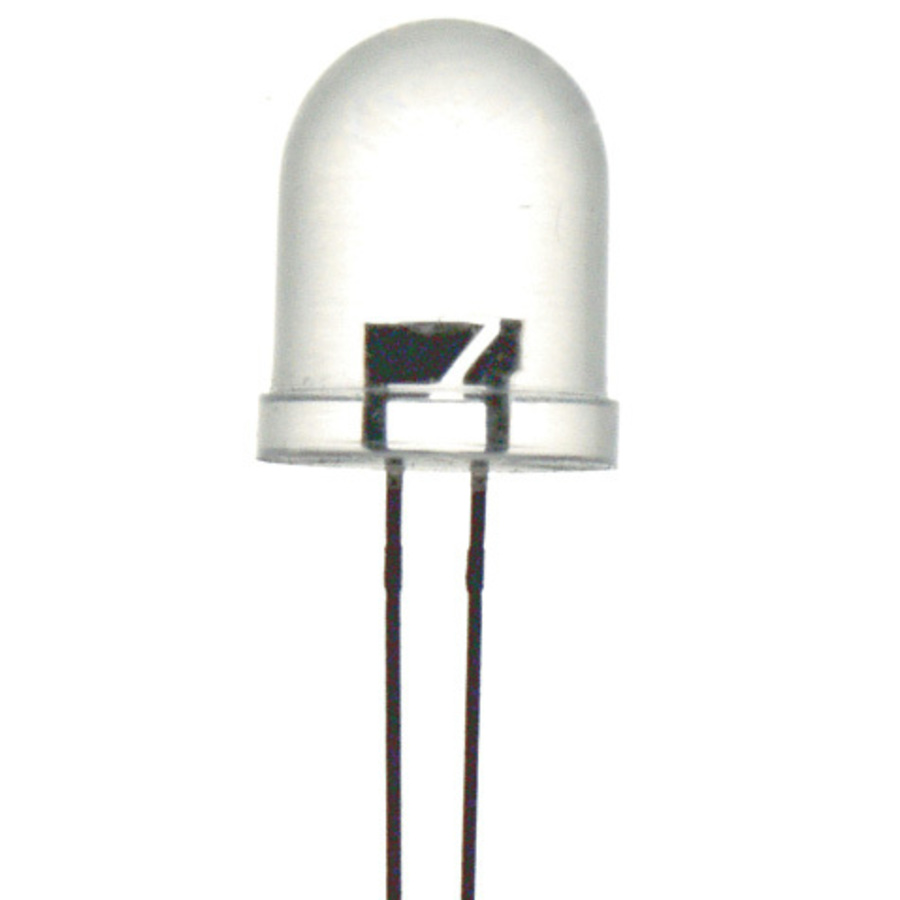

Yellow 10mm LED 6000mcd Round Clear
Yellow 10mm LED 6000mcd Round Clear

CAT. No. ZD0211

Yellow 10mm LED 6000mcd Round Clear
product image thumb

Yellow 10mm LED 6000mcd Round Clear

$1.35
Yellow 10mm light emitting diode 6000mcd Round Clear

Please call (02) 4782 6943

Description

LED

Yellow 10mm LED 6000mcd Round Clear

    Specifications

    Product Dimensions

    Diameter
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 1.1cm
    Packaged Width
    		 1.1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.00484l
    Packaged Height
    		 4cm

    LED Components

    Light Colour
    		 Yellow
    Lens Type
    		 waterclear
    Light Wavelength
    		 588nm
    Viewing Angle
    		 30°
    Intensity
    		 6000mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2V
    Resistor for 12VDC
    		 510?
    Resistor for 9VDC
    		 350?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 50mA
    LED Type
    		 10mm Standard LED
    Resistor for 5VDC
    		 150?

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD0211-dataSheetMain.pdf
