Yellow 10mm LED 210mcd Round Diffused
Yellow 10mm LED 210mcd Round Diffused

CAT. No. ZD0213

Yellow 10mm LED 210mcd Round Diffused
product image thumb

Yellow 10mm LED 210mcd Round Diffused

$0.75

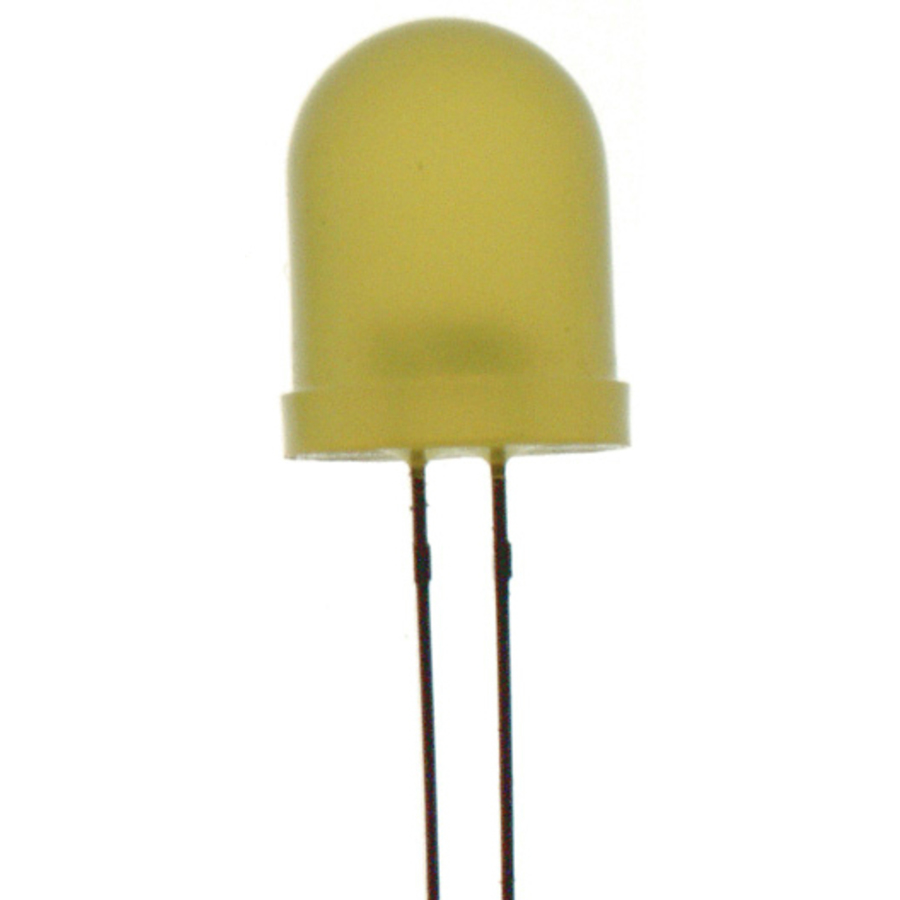

A yellow 10mm diffused light emitting diode with a brightness output of 210MCD.

Please call (02) 4782 6943

Description

LED

Yellow LED 10mm DIF 210MCD

    Specifications

    LED Components

    Light Colour
    		 Yellow
    Lens Type
    		 Diffused
    Light Wavelength
    		 590nm
    Viewing Angle
    		 60°
    Intensity
    		 210mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2V
    Resistor for 12VDC
    		 470?
    Resistor for 9VDC
    		 360?
    Illumination Type
    		 Single Colour
    LED Type
    		 10mm Standard LED
    Resistor for 5VDC
    		 150?

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 2 count
    component package
    		 radial
    Active connector type
    		 Solder Legs

    Product Dimensions

    Diameter
    		 10mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.004l
    Packaged Height
    		 1cm
