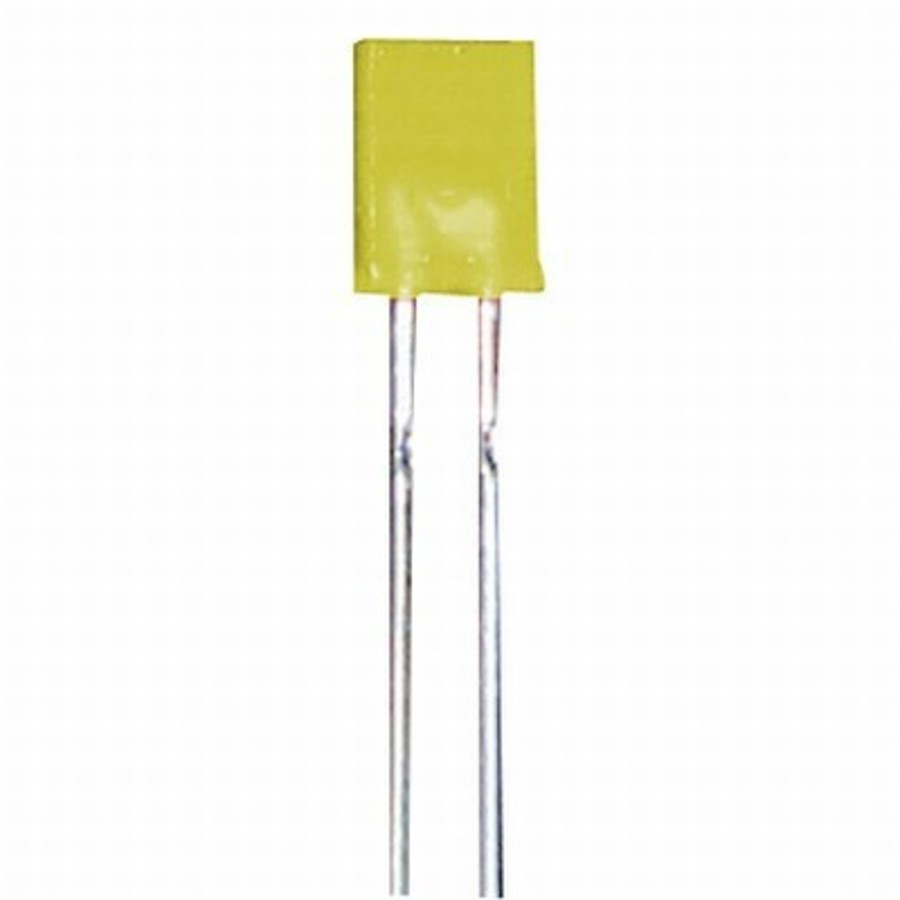

Yellow 5x2mm LED 10mcd Rectangular Diffused
Yellow 5x2mm LED 10mcd Rectangular Diffused

CAT. No. ZD0234

Yellow 5x2mm LED 10mcd Rectangular Diffused
product image thumb

Yellow 5x2mm LED 10mcd Rectangular Diffused

$0.5
SpecificationsSize (mm)5x2ColourYellowLensDiffusedViewing Angle (Degrees)155Wavelength (nm)590IF Typical (mA)20VF Typical (V)1.9IV Typical (mcd)10IF M...

Please call (02) 4782 6943

Description

LED

Specifications
Size (mm) 5x2
Colour Yellow
Lens Diffused
Viewing Angle (Degrees) 155
Wavelength (nm) 590
IF Typical (mA) 20
VF Typical (V) 1.9
IV Typical (mcd) 10
IF Max Continuous (mA) 20
Preferred Series Resistor (ohms)
5VDC 160
9VDC 360
12VDC 510

    Specifications

    Packaged Dimensions

    Packaged Length
    		 3.7cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.5cm

    LED Components

    Light Colour
    		 Yellow
    Lens Type
    		 Diffused
    Light Wavelength
    		 590nm
    Viewing Angle
    		 155°
    Intensity
    		 10mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 1.9V
    Resistor for 12VDC
    		 510?
    Resistor for 9VDC
    		 360?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 20mA
    LED Type
    		 Rectangular LED
    Resistor for 5VDC
    		 160?

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD0234-dataSheetMain.pdf
