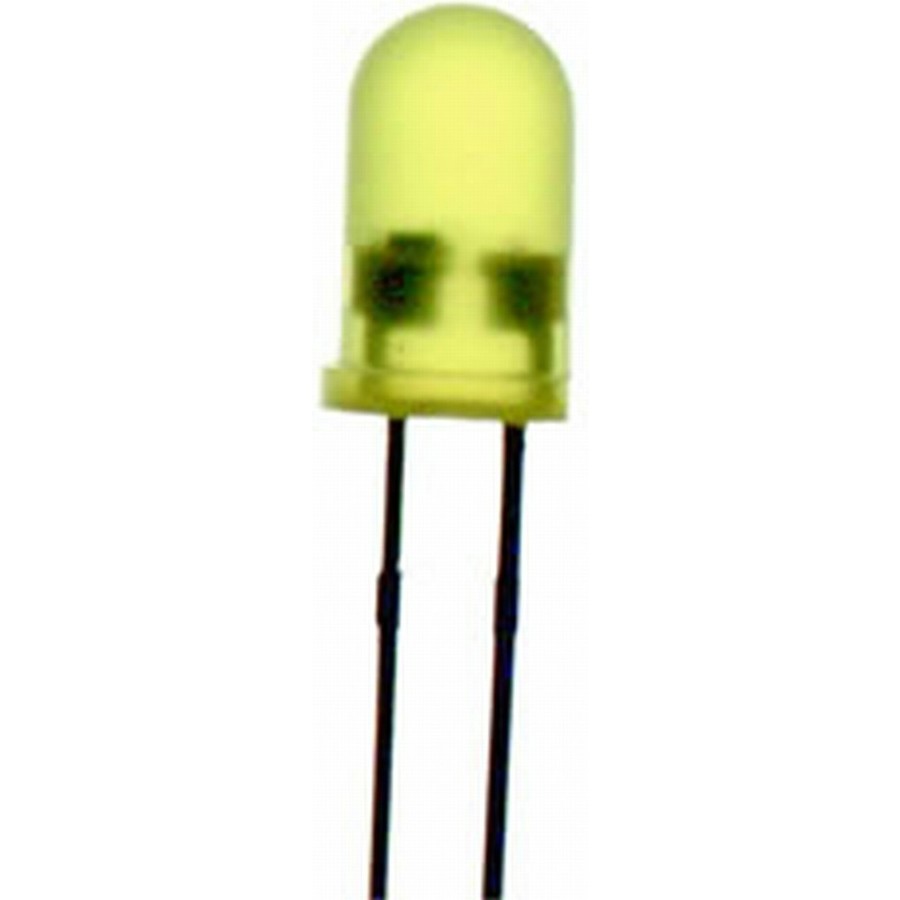

Yellow 5mm LED Flashing 35mcd Round Diffused
Yellow 5mm LED Flashing 35mcd Round Diffused

CAT. No. ZD0244

Yellow 5mm LED Flashing 35mcd Round Diffused
product image thumb

Yellow 5mm LED Flashing 35mcd Round Diffused

$1.45
Yellow 5mm light emitting diode Flashing 35mcd Round Diffused

Please call (02) 4782 6943

Description

LED

Yellow 5mm LED Flashing 35mcd Round Diffused

    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 3.7cm

    LED Components

    Light Colour
    		 Yellow
    Illumination Type
    		 Flashing
    Light Wavelength
    		 597nm
    LED Type
    		 5mm Standard LED
    Viewing Angle
    		 45°
    Intensity
    		 35mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 5V
    Resistor for 5VDC
    		 10?

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD0244-dataSheetMain.pdf
