Tricolour RedGreenOrange 3mm LED 4.56mcd Round Diffused
Tricolour RedGreenOrange 3mm LED 4.56mcd Round Diffused

CAT. No. ZD0249

Tricolour RedGreenOrange 3mm LED 4.56mcd Round Diffused
product image thumb

Tricolour RedGreenOrange 3mm LED 4.56mcd Round Diffused

$0.85

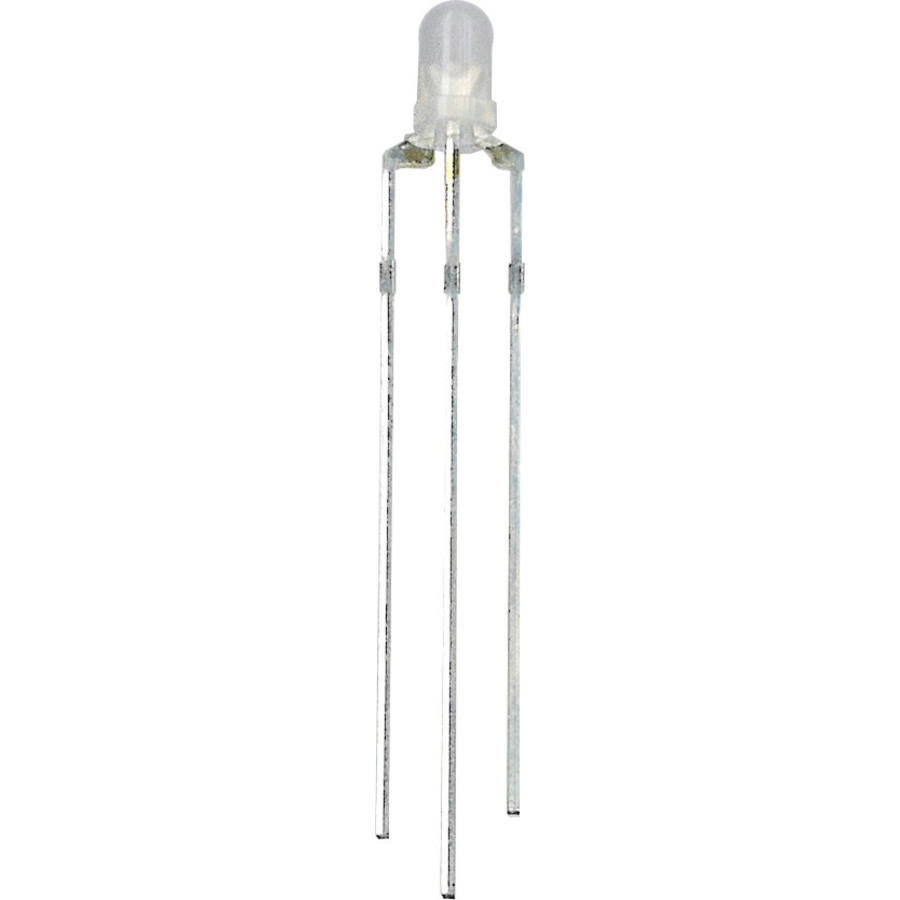

Red/Green Bi-colour LED with common cathode to allow tri-colour function 3mm Diameter

Please call (02) 4782 6943

Description

LED

Specifications
• Colour: Red/Green with common cathode. Activate both colours to achieve orange
• Size: 3mm
• Lens: Diffused
• Viewing Angle: 75 degrees
• Wavelength: Red 625nm Green 570nm
• Typical Forward Current: 20mA
• Typical Forward Voltage:2.0V
• Luminous Intensity: 4.5 - 6.0 mcd
• Continuous Maximum Current: 30mA


    Specifications

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.4cm

    LED Components

    Light Colour
    		 Red, Green, Orange
    Lens Type
    		 Diffused
    Light Wavelength
    		 570nm-625nm
    Viewing Angle
    		 75°
    Intensity
    		 4.5mcd-6mcd, 4.5mcd, 6mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2V
    Resistor for 12VDC
    		 510?
    Resistor for 9VDC
    		 360?
    Illumination Type
    		 Tri Colour, Common Cathode
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 3mm Standard LED
    Resistor for 5VDC
    		 150?

    LED Section Details

    Intensity
    		 4.5mcd-6mcd, 4.5mcd, 6mcd
    Wavelength
    		 625nm, 570nm
    Colour Section
    		 Red, Green

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 3 count
    component package
    		 radial
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD0249-dataSheetMain.pdf
