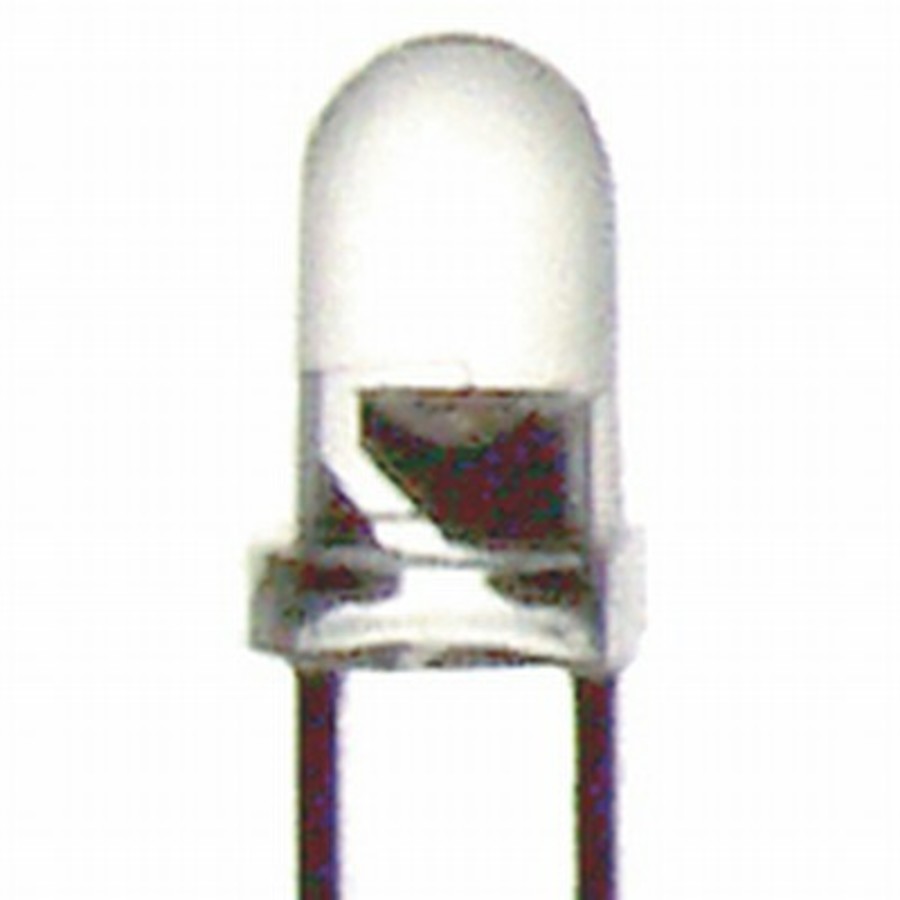

Bicolour RedGreen 5mm LED 45mcd Round Diffused
Bicolour RedGreen 5mm LED 45mcd Round Diffused

CAT. No. ZD0250

Bicolour RedGreen 5mm LED 45mcd Round Diffused
product image thumb

Bicolour RedGreen 5mm LED 45mcd Round Diffused

$1.25
Bicolour Red/Green 5mm LED 45mcd Round Diffused

Please call (02) 4782 6943

Description

LED

Features:
Bi Colour Red Green

Wavelength (nm) 625(R) 567(G)
VF Typical (V) 2.1(R) 2.2(G)
IV Typical (mcd) 7.6(R) 10(G)


    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.6cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.00105l
    Packaged Height
    		 0.5cm

    LED Components

    Resistor for 9VDC
    		 360?
    Light Colour
    		 Red
    Lens Type
    		 waterclear
    Illumination Type
    		 Bi Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 5mm Standard LED
    Viewing Angle
    		 90°
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    Resistor for 12VDC
    		 510?
    Resistor for 5VDC
    		 150?

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles
      Projects

    ZD0250-dataSheetMain.pdf
