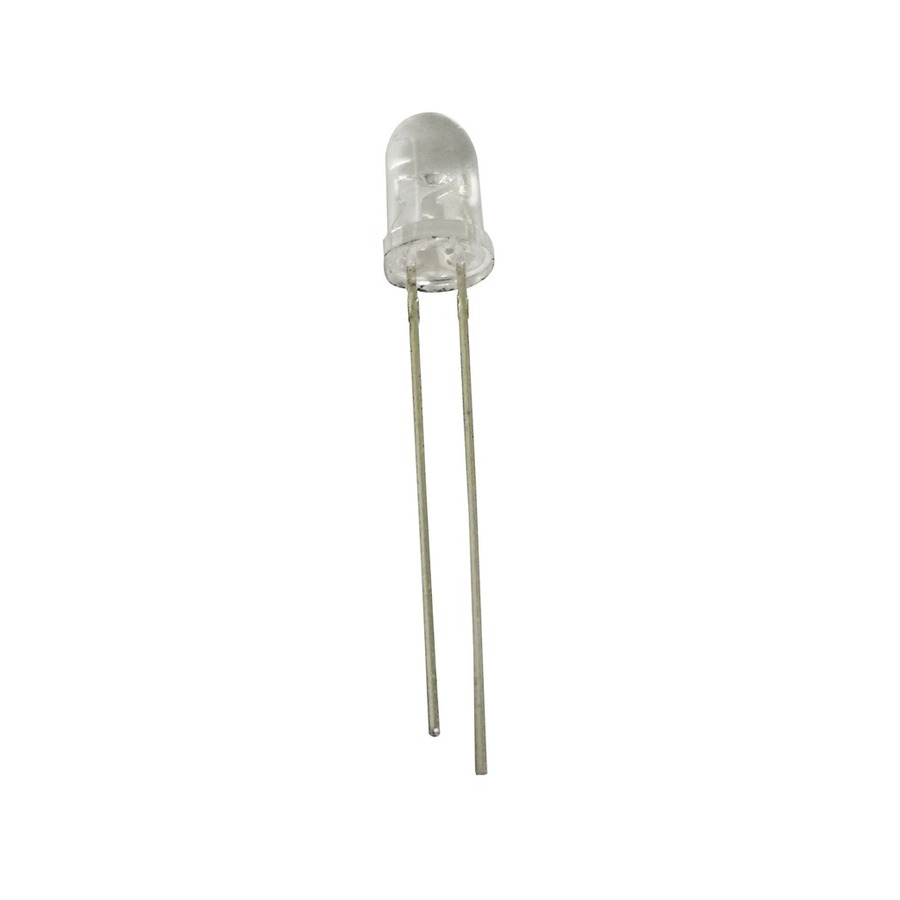

Ultraviolet 5mm LED 60mcd Round Clear
Ultraviolet 5mm LED 60mcd Round Clear

CAT. No. ZD0260

Ultraviolet 5mm LED 60mcd Round Clear
product image thumb

Ultraviolet 5mm LED 60mcd Round Clear

$1.85
Purple in appearance. Ultraviolet 5mm LED 60mcd Round Clear

Please call (02) 4782 6943

Description

LED

Ultraviolet 5mm LED 60mcd Round Clear

    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.5cm

    LED Components

    Light Colour
    		 Ultra Violet
    Lens Type
    		 waterclear
    Light Wavelength
    		 405nm
    Viewing Angle
    		 30°
    Intensity
    		 60mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.3V
    Resistor for 12VDC
    		 430?
    Resistor for 9VDC
    		 300?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 20mA
    LED Type
    		 5mm Standard LED
    Resistor for 5VDC
    		 91?

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD0260-dataSheetMain.pdf
