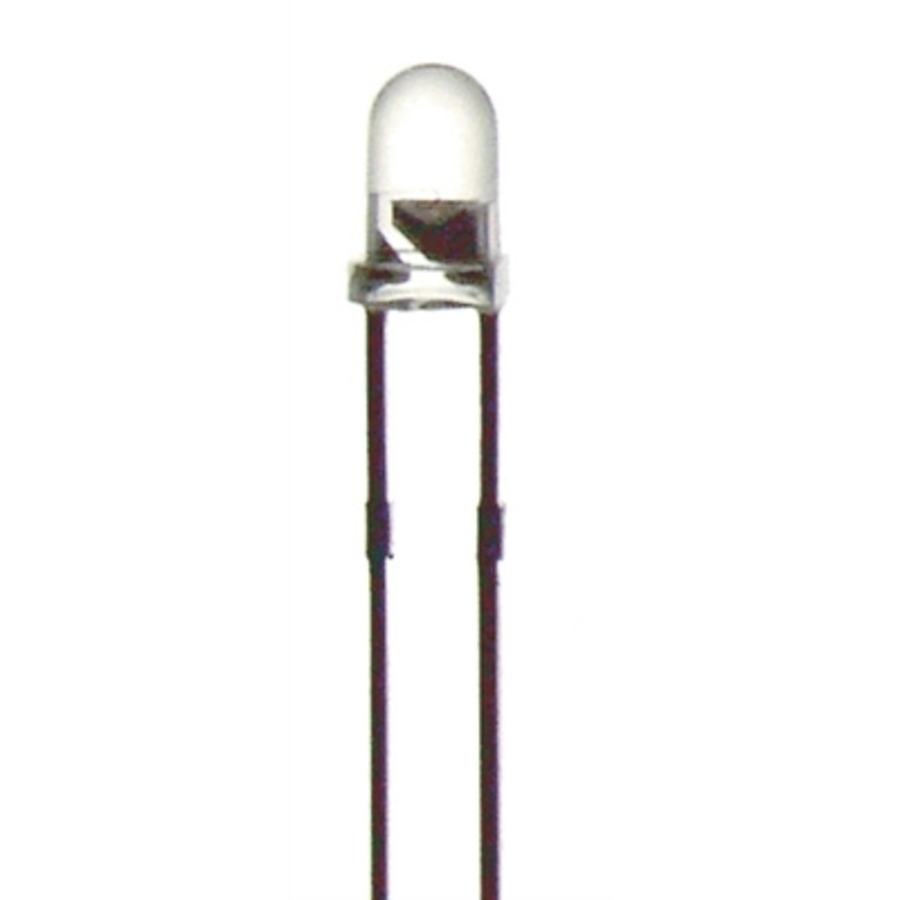

Tricolour RGB 5mm LED Colour Cycling 2000-5000mcd Round Clear
Tricolour RGB 5mm LED Colour Cycling 2000-5000mcd Round Clear

CAT. No. ZD0269

Tricolour RGB 5mm LED Colour Cycling 2000-5000mcd Round Clear
product image thumb

Tricolour RGB 5mm LED Colour Cycling 2000-5000mcd Round Clear

$3.5
RGB LED 5mm Clear FLASH 2000/3500/5000MCD

Please call (02) 4782 6943

Description

LED

RGB LED 5mm Clear FLASH 2000/3500/5000MCD

    Specifications

    LED Components

    Light Colour
    		 Red, Green, Blue
    Lens Type
    		 waterclear
    Light Wavelength
    		 470nm-620nm
    Viewing Angle
    		 20°
    Intensity
    		 2000mcd-5000mcd, 2000lm
    I<sub>f (typ)</sub> - Typical Forward Current
    		 30mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.2V
    Resistor for 12VDC
    		 270?
    Resistor for 9VDC
    		 180?
    Illumination Type
    		 Cycling
    I<sub>f (max)</sub> - Maximum Forward Current
    		 100mA
    LED Type
    		 5mm Standard LED
    Resistor for 5VDC
    		 56?

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 2 count
    component package
    		 radial
    Active connector type
    		 Solder Legs

    LED Section Details

    Intensity
    		 2000mcd-5000mcd, 2000lm
    Colour Section
    		 Red

    Product Dimensions

    Diameter
    		 5mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 8.8E-4l
    Packaged Height
    		 3.5cm
