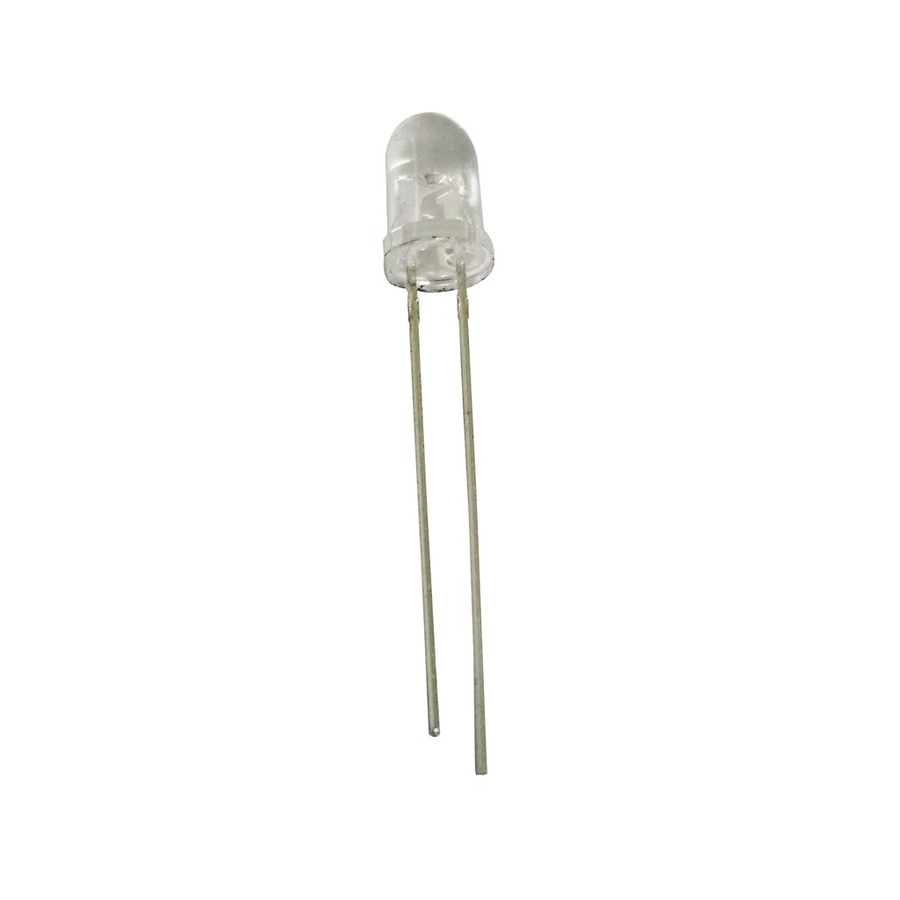

Green 5mm Cree LED 64600mcd Round Clear
Green 5mm Cree LED 64600mcd Round Clear

CAT. No. ZD0292

Green 5mm Cree LED 64600mcd Round Clear
product image thumb

Green 5mm Cree LED 64600mcd Round Clear

$6.45
Green 5mm Cree light emitting diode 64600mcd Round Clear

Please call (02) 4782 6943

Description

LED

Green 5mm Cree® LED 64600mcd Round Clear

    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 3.5cm

    LED Components

    Light Colour
    		 Green
    Lens Type
    		 waterclear
    Light Wavelength
    		 527nm
    Viewing Angle
    		 15°
    Intensity
    		 64600mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 30mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.2V
    Resistor for 12VDC
    		 300?
    Resistor for 9VDC
    		 200?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 CREE XP-E
    Resistor for 5VDC
    		 62?

    Product Availability

    Availability
    		 Stocked item

N/A
