CAT. No. ZD0579

Waterproof LED Flexible Strip Light - 1m
product image thumb
product image thumb
product image thumb

Waterproof LED Flexible Strip Light - 1m

$49.95
Versatile fully waterproof 1m flexible LED strip - Ideal for vehicles, around the home, or in the workshop - 12VDC 1A power required - 800 lumen output

Please call (02) 4782 6943

Description

1 Year Warranty
LED

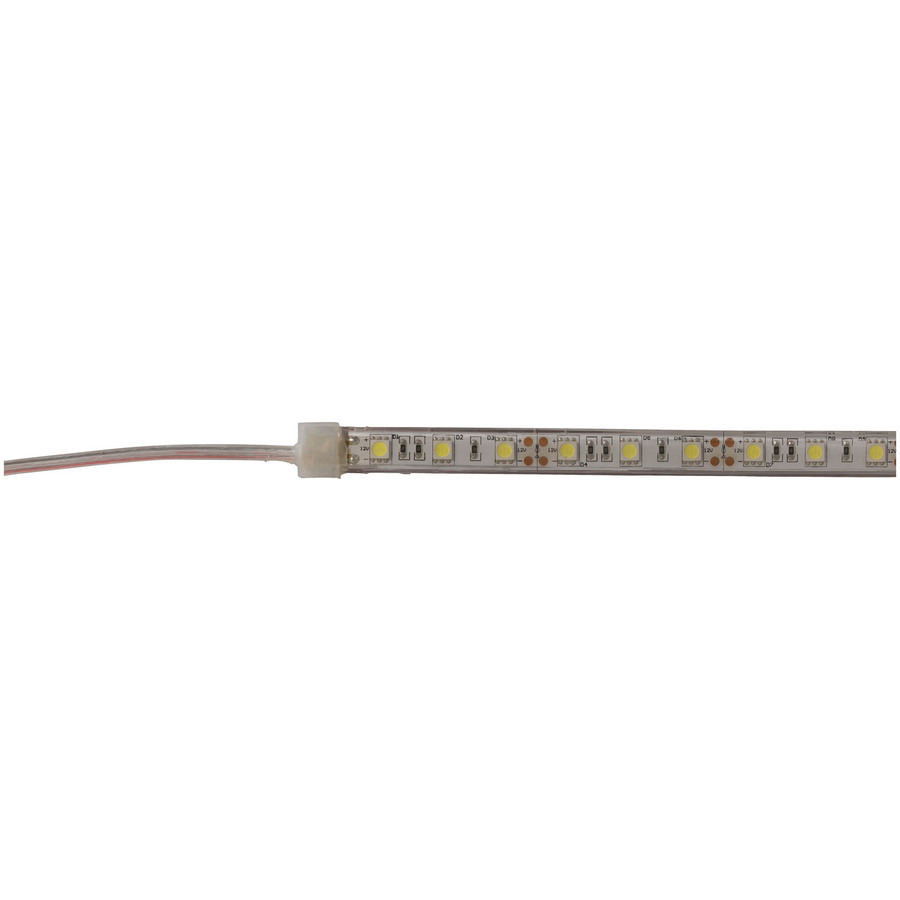

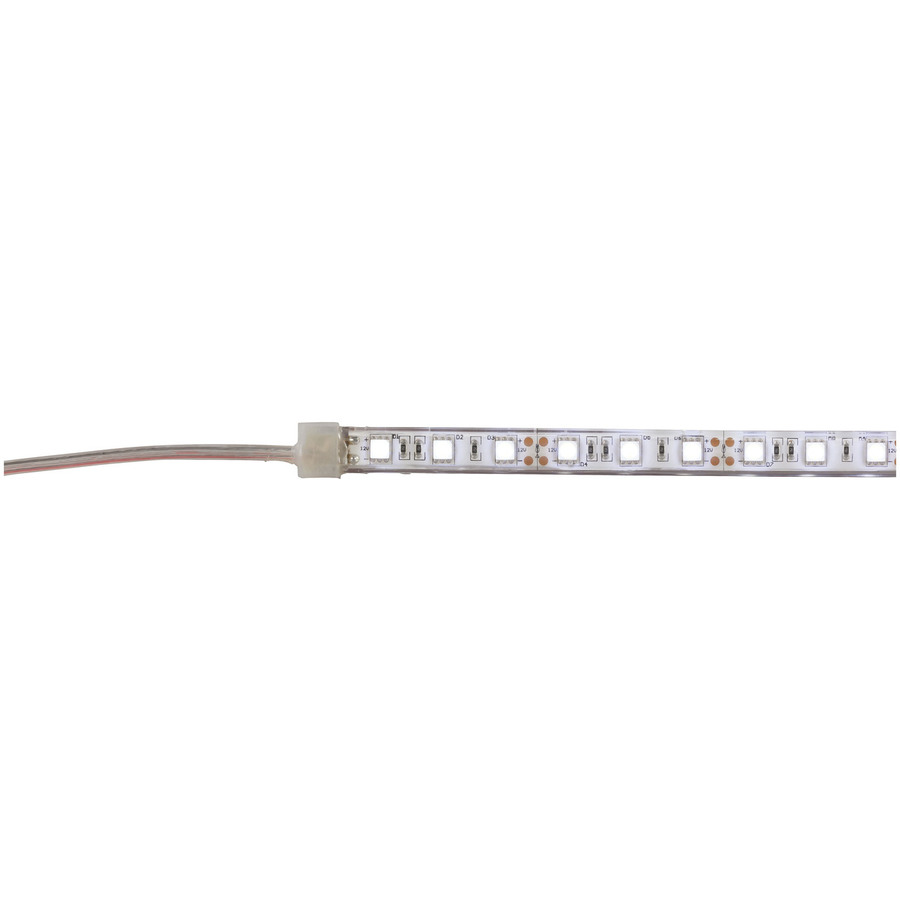

Fully waterproof yet flexible, this versatile LED strip is made from an array of 60 ultra high brightness 5050 SMD-type LEDs. Perfect for any outdoor application needing some bright, reliable lighting. Everything’s encapsulated in a protective casing to keep the dust and water out. Weatherproof male / female connections are provided for easy installation, simply hook the flylead end to a suitable 12V power source and plug in the strip.

Features:
• Super bright 800 lumens
• Self-adhesive backing
• Sold as a single 1m length
• Can be cut to shorter lengths

Handy Tip LED Strip Lighting

Our range of LED strip lights are made using some of the most common type of SMD LEDs used in LED lighting products; the 3528 type, and the 5050/5060type. Their model designations actually come from their footprint dimensions:3528 = 3.5x2.8mm, 5050 = 5.0x5.0mm, and 5060 = 5.0x6.0mm. The 3528 type is a single LED emitter type in a very compact package, whereas the 5050 and5060 type are commonly referred to as triple-chip due to having three LED emitters built into the one package. The 3528 typically offers superior lumen performance per emitter and greater light efficiency than 5050/5060, but the5060/5060 triple-chip types are more cost effective due to lower manufacturing and production costs when built into a finished product.

    Specifications

    Lighting Details


    Illuminated Colour
    Cool white
    LED Quantity
    60pc
    LED Type
    5050 SMD
    LED Connection
    SMD
    LED replaceable

    Light Output


    Light Rating Lumens
    850lm

    Ingress Protection Rating


    IP Rating
    IP67
    Dust/Particle Ingress Protection
    6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    7 - Immersion up to 1m

    Product Dimensions


    Length
    1m
    Height
    5mm
    Width
    13mm

    Packaged Dimensions


    Packaged Length
    21.5cm
    Packaged Width
    17.5cm
    Packaged Weight
    0.156kg
    Packaged Volume
    1.617875l
    Packaged Height
    4.3cm

    Product Mounting


    Mounting Method
    Self Adhesive

    Power Source Details


    DC Voltage
    12V
    Connection Size
    2.1mm
    Connection Details

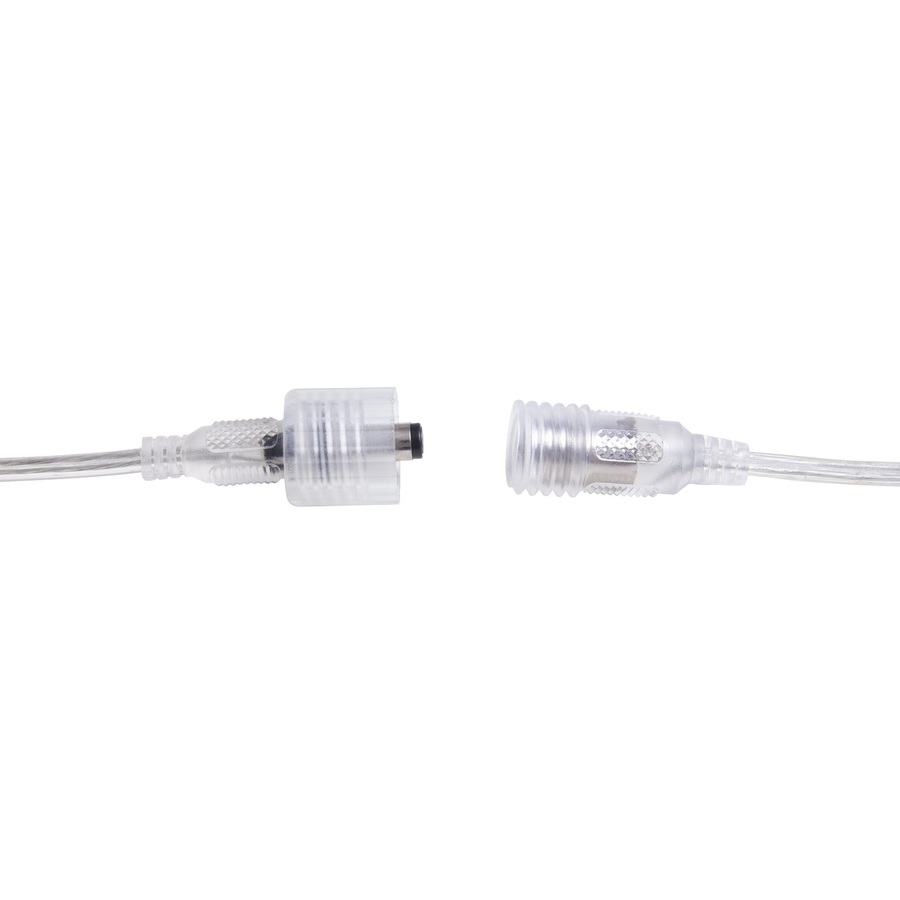

    Supplied with weatherproof 2.1mm DC plug and matching socket flylead, DC plug can be joined to DC plug on PSU output with suitable adaptor (sold separately)
    Item connection
    Flyleads, Barrel Plug
    DC Current Draw
    1A

    Product Availability


    Availability
    Stocked item
    Warranty: 12 Months
