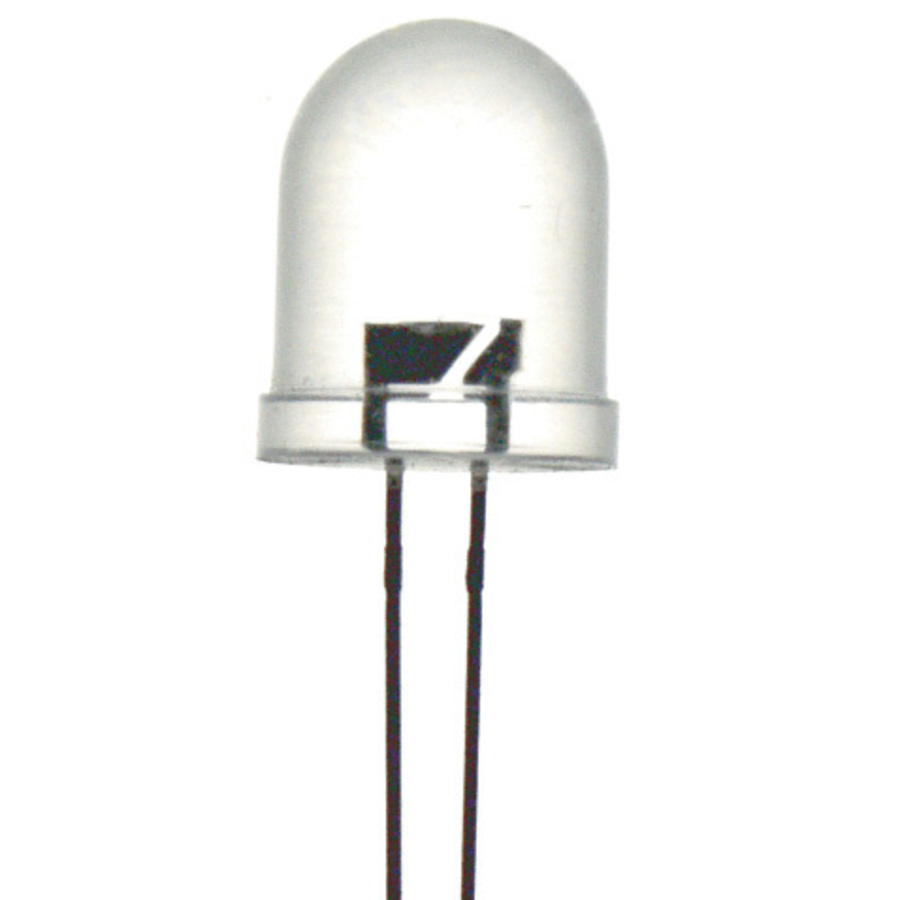

LED 5mm Red Waterclear 35000mcd
LED 5mm Red Waterclear 35000mcd

CAT. No. ZD1790

LED 5mm Red Waterclear 35000mcd
product image thumb

LED 5mm Red Waterclear 35000mcd

$2.25
A 5mm Red light emitting diode in Waterclear format at 35000mcd brightness.

Please call (02) 4782 6943

Description

LED

LED 5mm Red Waterclear 35000mcd

    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 8.8E-4l
    Packaged Height
    		 0.5cm

    LED Components

    Light Colour
    		 Red
    Lens Type
    		 waterclear
    Light Wavelength
    		 616nm
    Viewing Angle
    		 8°
    Intensity
    		 35000mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 50mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.1V
    Resistor for 12VDC
    		 200?
    Resistor for 9VDC
    		 150?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 50mA
    LED Type
    		 5mm Standard LED
    Resistor for 5VDC
    		 62?

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD1790-dataSheetMain.pdf
