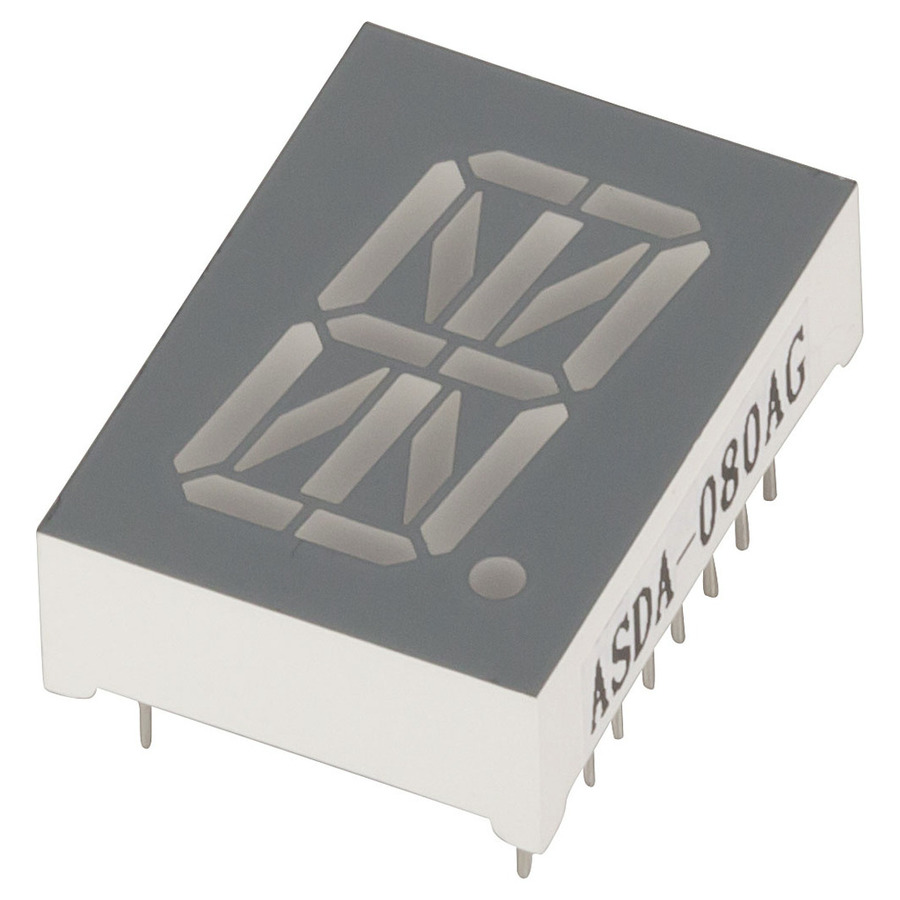

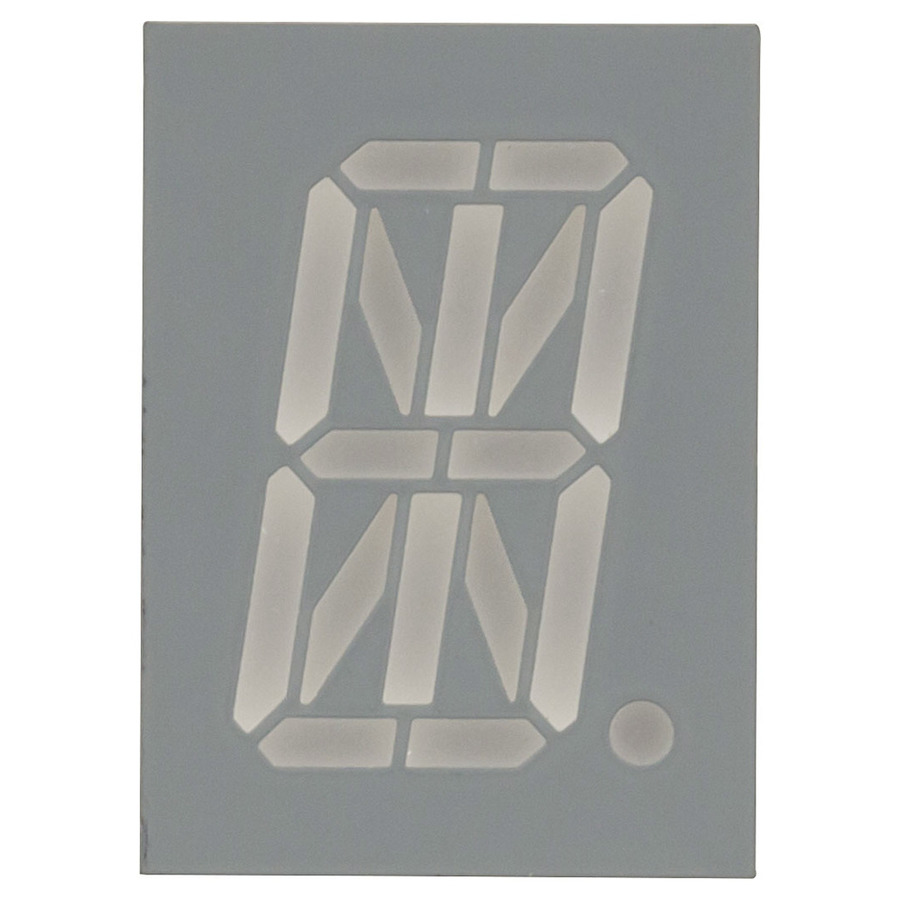

Green 16 Segment Common Anode LED display
Green 16 Segment Common Anode LED display
Green 16 Segment Common Anode LED display

CAT. No. ZD1826

Green 16 Segment Common Anode LED display
product image thumb
product image thumb

Green 16 Segment Common Anode LED display

$3.95
Full function 16 segment LED module for alphabetical and numerical output display.

Please call (02) 4782 6943

Description

LED

Full function 16 segment LED module for alphabetical and numerical output display. Designed to be fitted in close format to allow display of words and larger numbers. Wiring format: Common Anode.


    Specifications

    Additional Dimensions

    Dimension for
    		 Other (details below)
    Height
    		 20.3mm, 27.7mm
    Dimensions details
    		 Digit
    Width
    		 11mm, 20mm

    Product Dimensions

    Height
    		 20.3mm, 27.7mm
    Width
    		 11mm, 20mm
    Depth
    		 8.5mm

    LED Components

    Light Colour
    		 Green
    Lens Type
    		 waterclear
    Light Wavelength
    		 568nm
    I<sub>f (typ)</sub> - Typical Forward Current
    		 50mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.2V

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 2.8cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.0055kg
    Packaged Volume
    		 0.00952l
    Packaged Height
    		 1.7cm

    Downloads

    ZD1826-dataSheetMain.pdf
