FND507LTS542RS50 RWB Common Anode 7 Segment Display

$2.95
From our range of specialty bar graphs, displays, globes and light emitting diodes.

Please call (02) 4782 6943

Description

LED

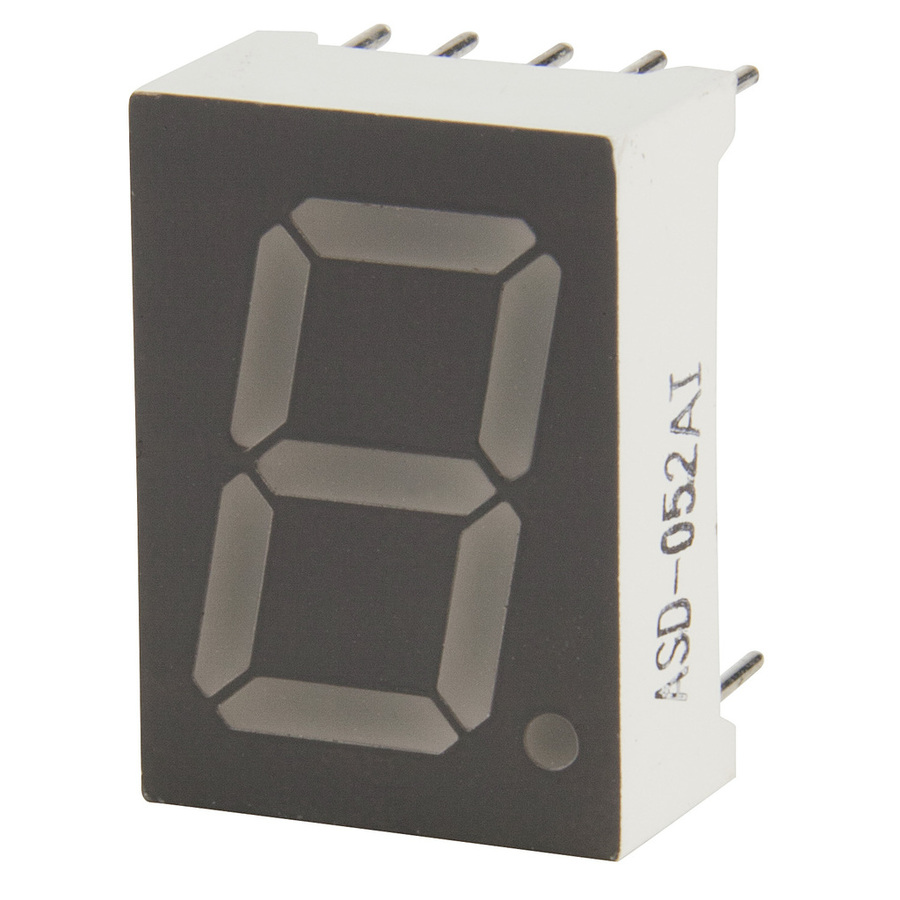

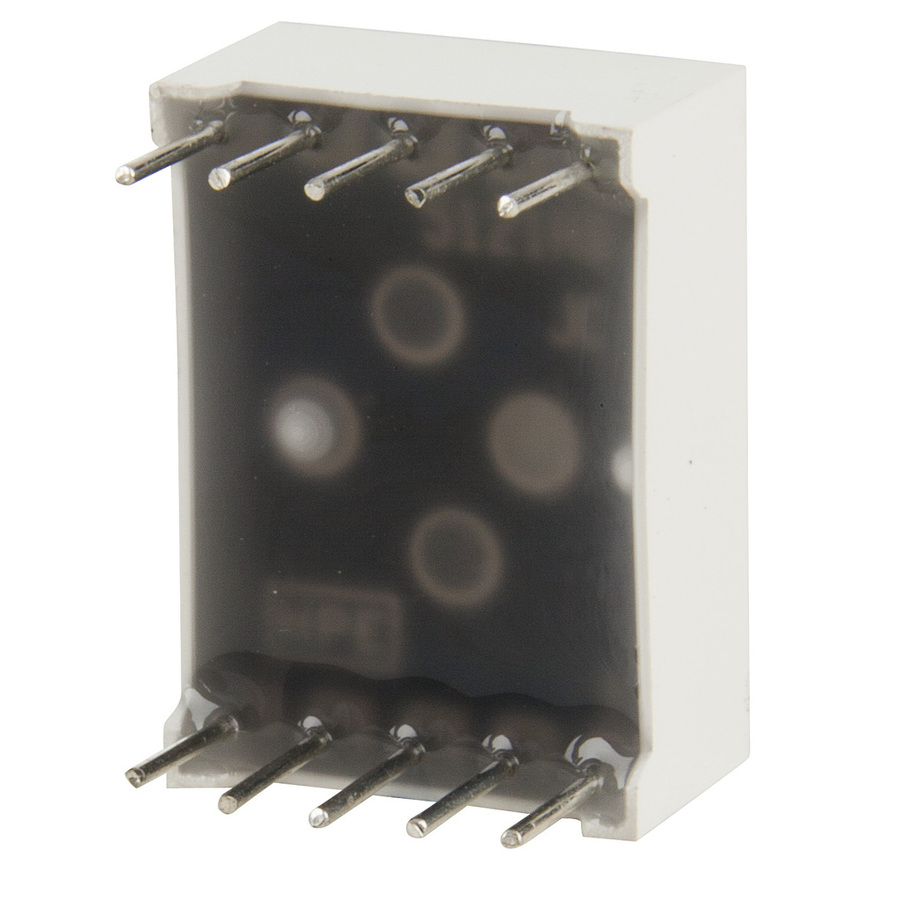

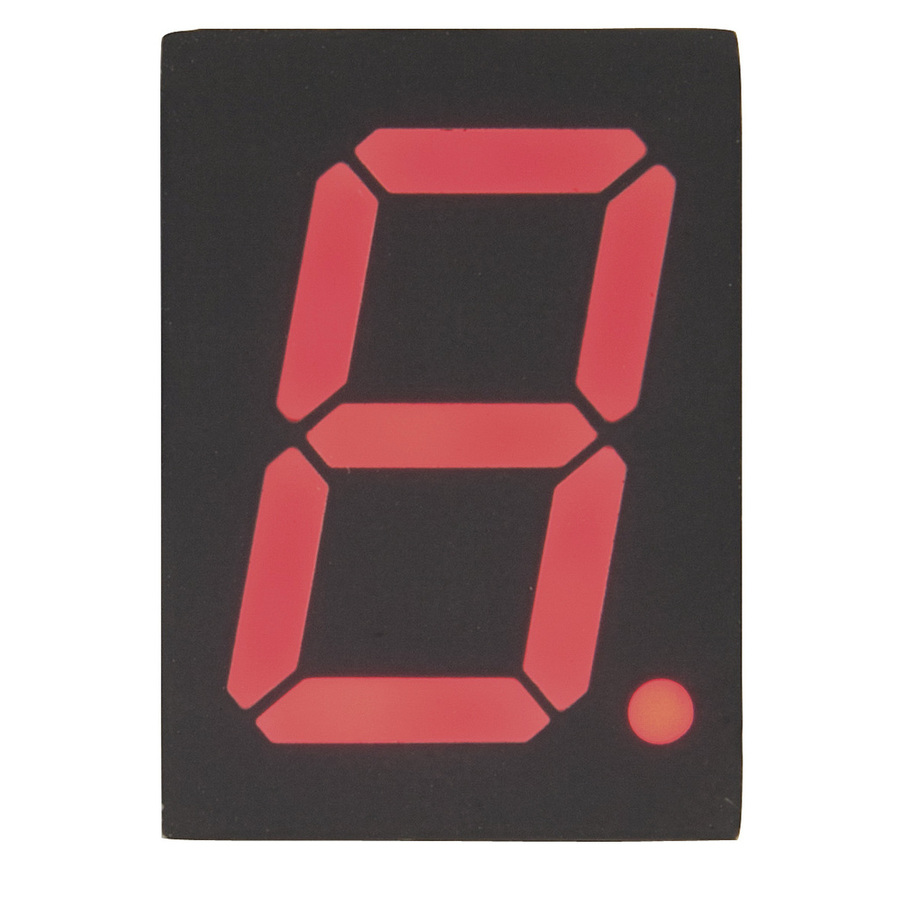

Standard 7 segment LED module for numerical output display. Designed to be fitted in close format to allow display of larger numbers.

• Digit dimensions: 13.2(H) x 7.6(W)mm
• Package dimensions: 17.5(H) x 12.3(W) x 7(D)mm
• Common part number: FND507 / LTS542R / S50RWB


    Specifications

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.0042l
    Packaged Height
    		 1.4cm

    LED Components

    Light Colour
    		 Red
    Lens Type
    		 Diffused
    Illumination Type
    		 Common Anode
    LED Type
    		 7 Segment Digit Display
    I<sub>f (typ)</sub> - Typical Forward Current
    		 10mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.1V

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD1857-dataSheetMain.pdf
