UGN3503UA Hall Effect Sensor
UGN3503UA Hall Effect Sensor

CAT. No. ZD1902

UGN3503UA Hall Effect Sensor

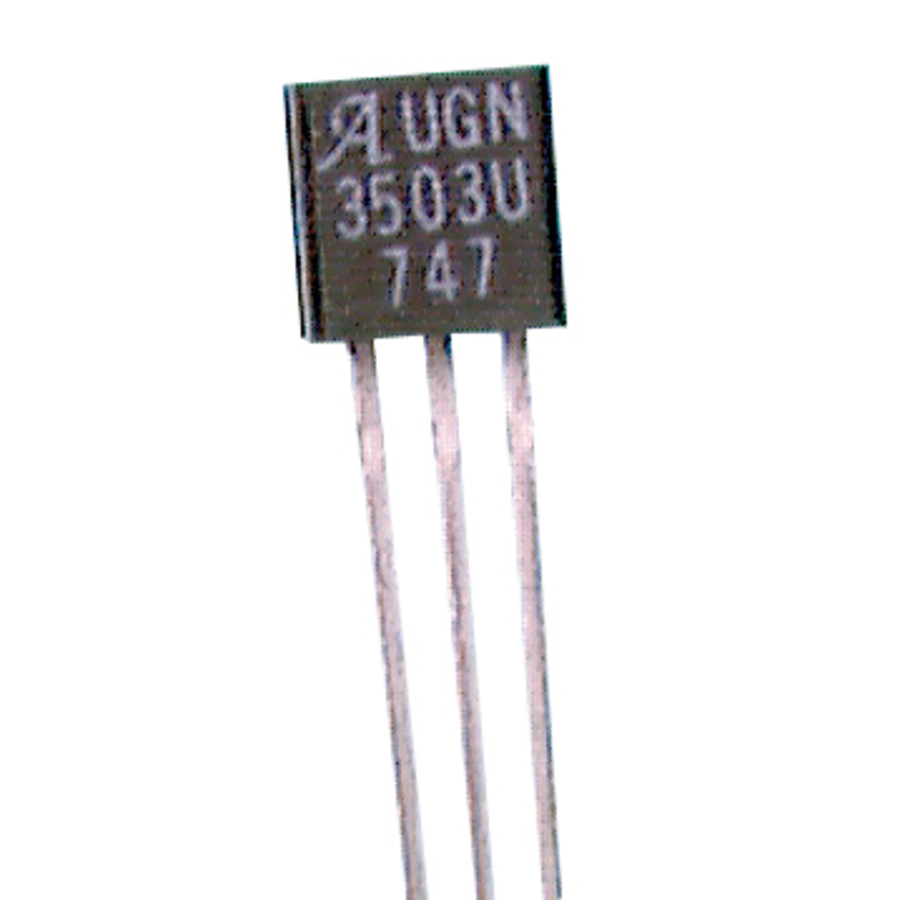

product image thumb

UGN3503UA Hall Effect Sensor

$9.95
A miniature sensor to accurately track extremely small changes in magnetic flux density - changes generally too small to operate hall effect switches...

Please call (02) 4782 6943

Description

Raspberry Pi Compatible
Arduino? Compatible


A miniature sensor to accurately track extremely small changes in magnetic flux density - changes generally too small to operate hall effect switches.

Applications include notch sensor, current monitor, gear tooth sensor, etc.

    Specifications

    Product Dimensions

    Height
    		 3.1mm
    Width
    		 4.17mm
    Depth
    		 1.57mm

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0l
    Packaged Height
    		 0.2cm

    Hall Effect Sensor

    Output Resistance
    		 50?
    Operating Voltage
    		 4.5V
    Supply Current
    		 9mA
    Output Voltage
    		 2.5V

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD1902-dataSheetMain.pdf
