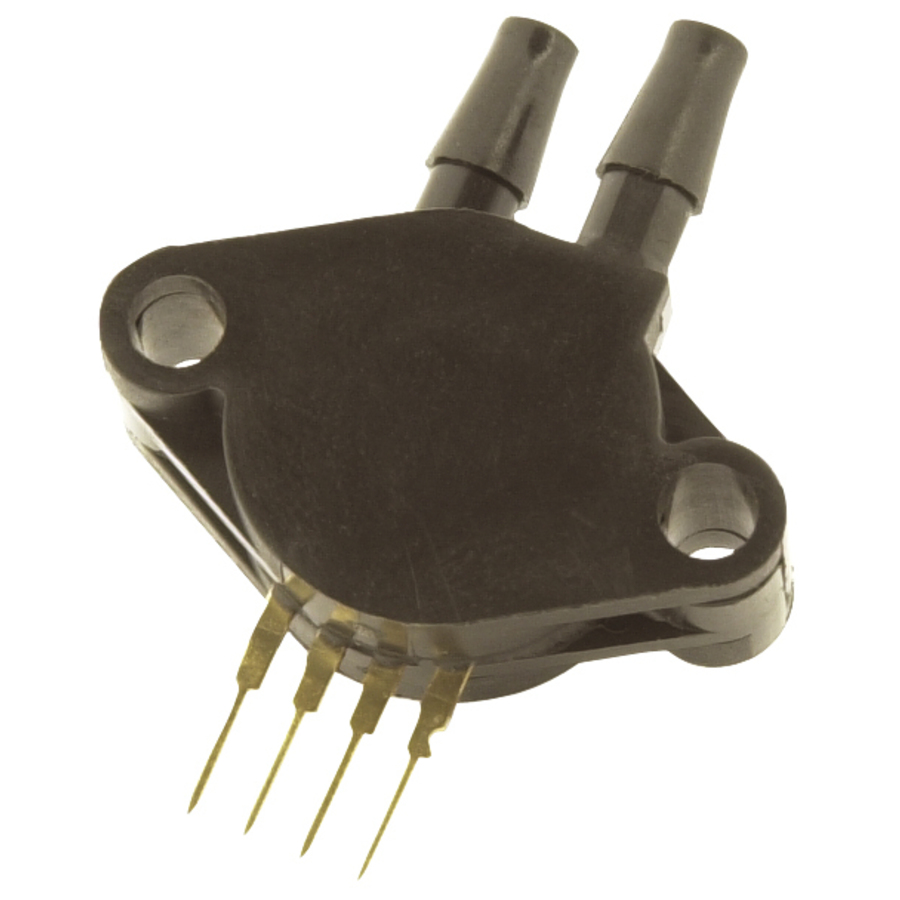

Pressure Differential Sensor
Pressure Differential Sensor

CAT. No. ZD1904

Pressure Differential Sensor
product image thumb

Pressure Differential Sensor

$44.95
The ZD-1904 piezo resistive pressure sensor provides a very accurate and linear voltage output

Please call (02) 4782 6943

Description

1 Year Warranty

The ZD-1904 piezo resistive pressure sensor provides a very accurate and linear voltage output directly proportional to the applied pressure. The sensor housed a single monolithic silicon die with a strain gauge and thin film resistor network on each chip.

Features:

- 0°C to 85°C temperature compensation
- 0 to 10kPa (0 to 1.45 psi)


    Specifications

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.005kg
    Packaged Volume
    		 0.0114l
    Packaged Height
    		 3.8cm

    Hall Effect Sensor

    Supply Current
    		 25mA
    Warranty: 12 Months

    Downloads

      Articles
      Projects

    ZD1904-dataSheetMain.pdf
