MOC3020MOC3021 Opto Coupler IC
MOC3020MOC3021 Opto Coupler IC

CAT. No. ZD1920

MOC3020MOC3021 Opto Coupler IC

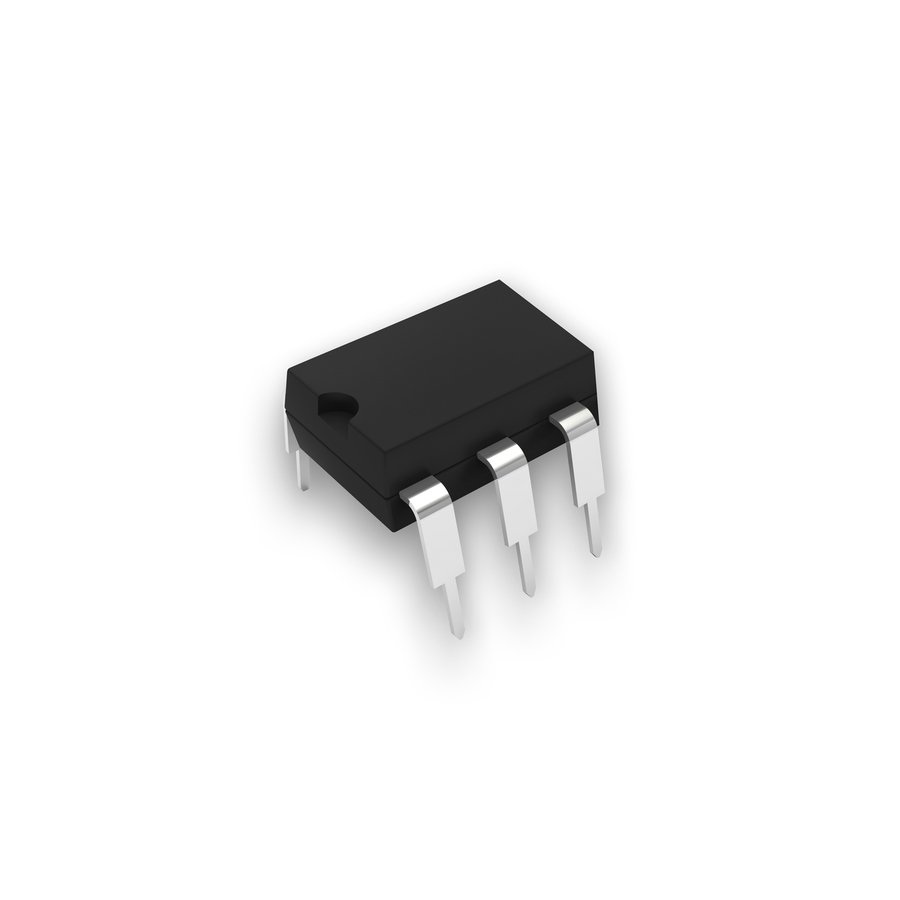

product image thumb

MOC3020MOC3021 Opto Coupler IC

$3.85
This is designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 240VAC operations...

Please call (02) 4782 6943

Description

  • Excellent stability - IR emitting diode has low degredation
  • High isolation voltage - minimum 7.5KVAC peak
  • Underwriters Labratory (UL) recognised - file#E90700
  • Recommended for 240VAC RMS applications

    Specifications

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 1cm

    Active Optocoupler

    Power Dissipation
    		 300
    Optocoupler Type
    		 Non-zero crossing triacs
    Minimum Isolation Voltage
    		 7500V
    Reverse Voltage
    		 3V
    Optocoupler Operating Current
    		 50mA
    Optocoupler Capacitance
    		 50pF

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD1920-dataSheetMain.pdf
