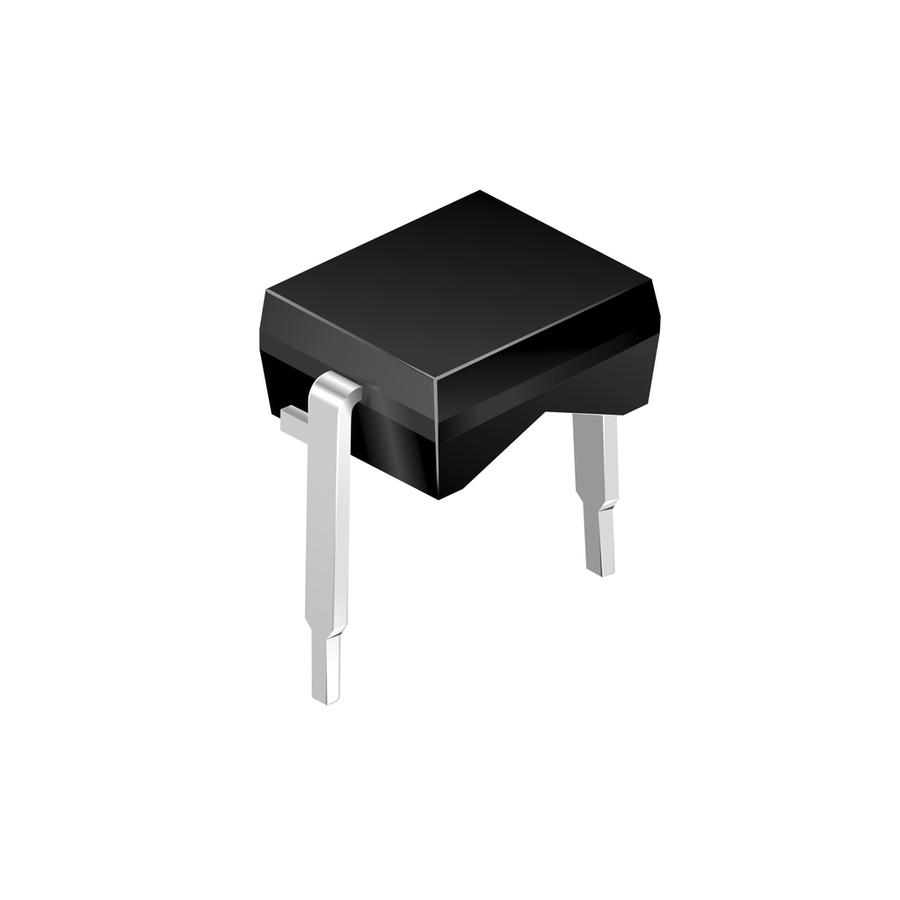

BP104 type Infrared Photodiode
BP104 type Infrared Photodiode

CAT. No. ZD1947

BP104 type Infrared Photodiode
product image thumb

BP104 type Infrared Photodiode

$4.35
Small square device measuring 4(w) x 5.4 (L) x 2(D)mm.Specifications:- Reverse voltage: 20V max - Forward voltage: 1.3V @ 100mA- Spectral sensitivity:...

Please call (02) 4782 6943

Description

Small square device.

Features:

- Wavelength of max. sens: 950nm
- Half angle: +/- 60°
- Open-circuit voltage: 330mV
- Rise and fall time: 20ns @ 5V
- Cathode marking: flag on leg

Handy Tip Frequency Response Curve

Normalised Frequency Response Curve of LED Capability

    Specifications

    Product Dimensions

    Length
    		 5.4mm
    Width
    		 4mm
    Depth
    		 2mm

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0l
    Packaged Height
    		 0.5cm

    Active Optocoupler

    Spectral Sensitivity
    		 34
    Spectral Range of Sensitivity
    		 800-1100
    Reverse Voltage
    		 20V
    Short-circuit Current
    		 17µA
    Optocoupler Capacitance
    		 48pF
    Forward Voltage
    		 1.30000000
    Dark Current
    		 2

    Product Availability

    Availability
    		 Stocked item
