8A 800V Inline Rectifier
8A 800V Inline Rectifier
8A 800V Inline Rectifier

CAT. No. ZR1362

8A 800V Inline Rectifier
product image thumb
product image thumb

8A 800V Inline Rectifier

$4.25

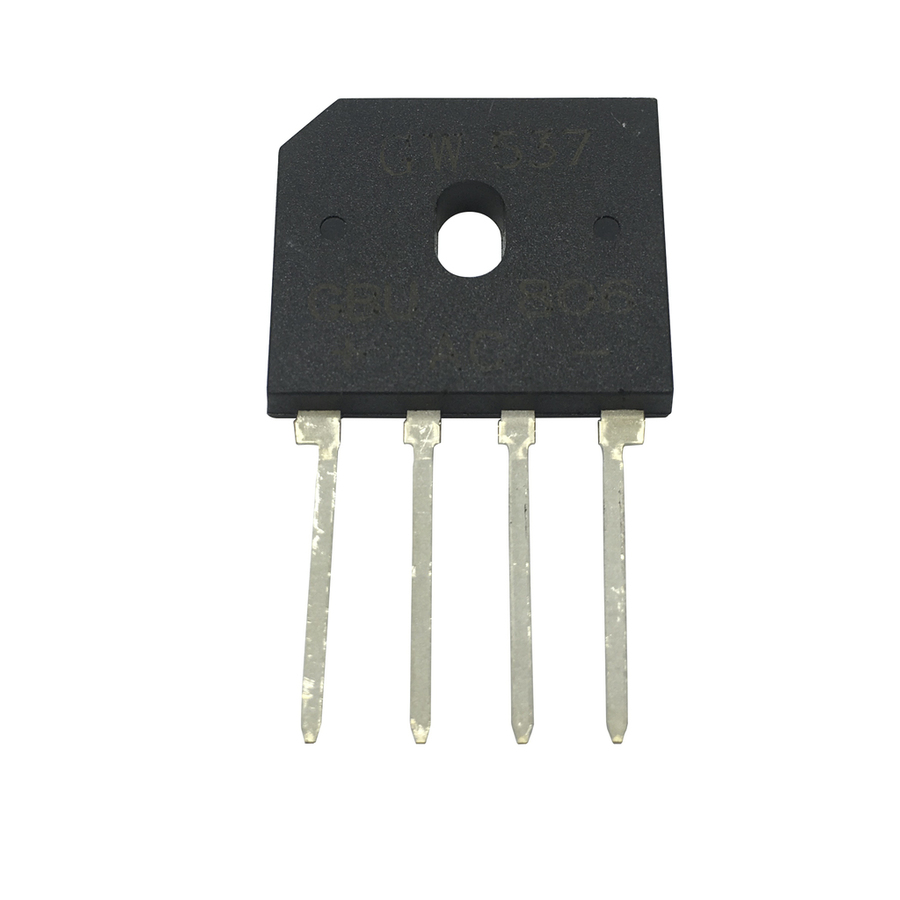

Glass passivated bridge rectifier. As used in many switchmode power supplies.                                          Max. forward current: 8A max RMS.  Voltage: 560V Max. DC blocking voltage: 800v

Please call (02) 4782 6943

Description

Glass passivated bridge rectifier. As used in many switchmode power supplies.

    Specifications

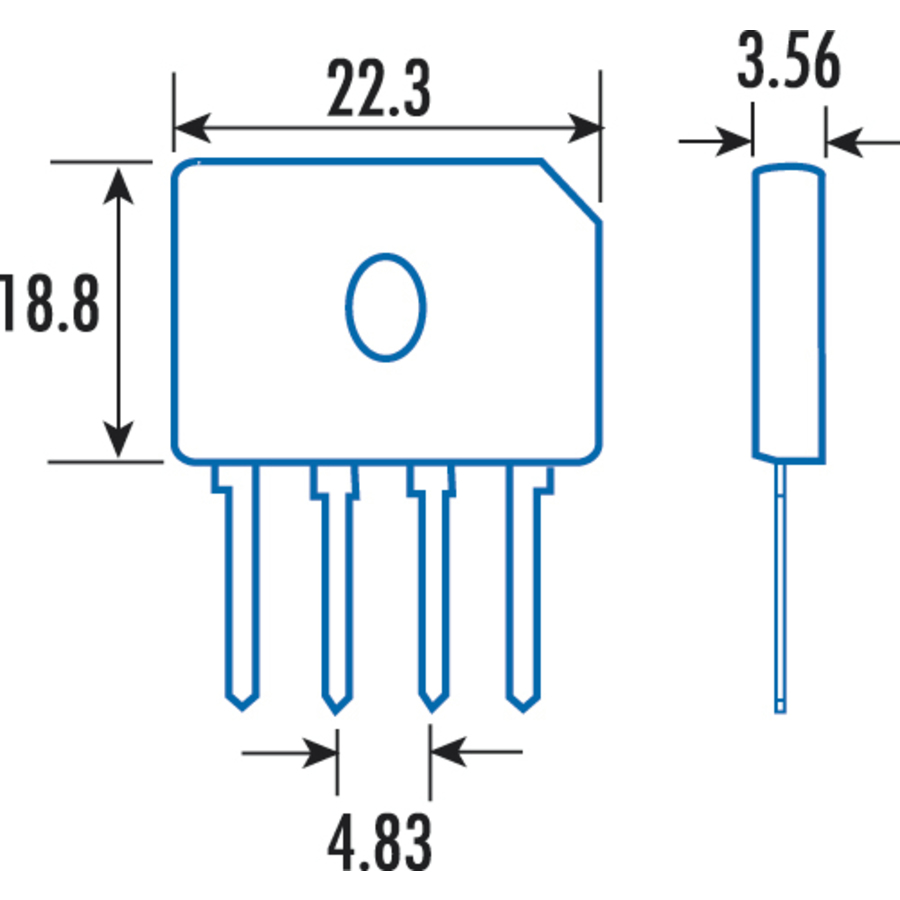

    Packaged Dimensions

    Packaged Length
    		 2.2cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.008kg
    Packaged Volume
    		 0.0055l
    Packaged Height
    		 5cm

    Active Diode

    Diode Composition
    		 Silicon
    Diode Type
    		 Bridge rectifier
    Diode forward voltage drop
    		 1V
    Diode maximum current
    		 8A
    Maximum Forward Voltage
    		 800V
    Diode package
    		 bridge rectifier (vertical or horizontal round or square)

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZR1362-dataSheetMain.pdf
