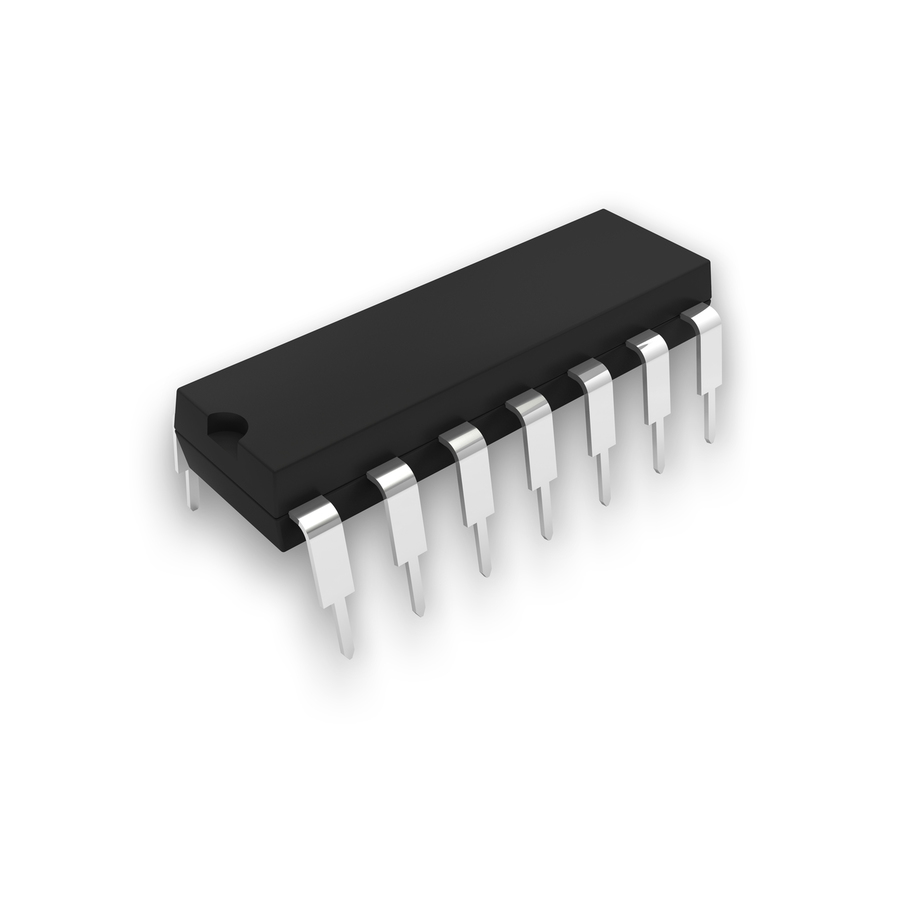

74LS20 Dual 4-input NAND Gate IC
74LS20 Dual 4-input NAND Gate IC

CAT. No. ZS5020

74LS20 Dual 4-input NAND Gate IC
product image thumb

74LS20 Dual 4-input NAND Gate IC

$1.95
Type Pins Description74LS20 14 Dual 4 input NAND gate...

Please call (02) 4782 6943

Description

Type Pins Description
74LS20 14 Dual 4 input NAND gate

    Specifications

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.002l
    Packaged Height
    		 1cm

    Integrated Circuit (IC)

    IC Static Sensitive
    IC op amp
    IC supply voltage
    		 5V

    Active Component

    Active marking code type
    		 Printed
    Active mount type
    		 Through Hole
    Active number of legs
    		 14 count
    max temperature
    		 70°C
    Active connector type
    		 Solder Legs

    Downloads

    ZS5020-dataSheetMain.pdf
