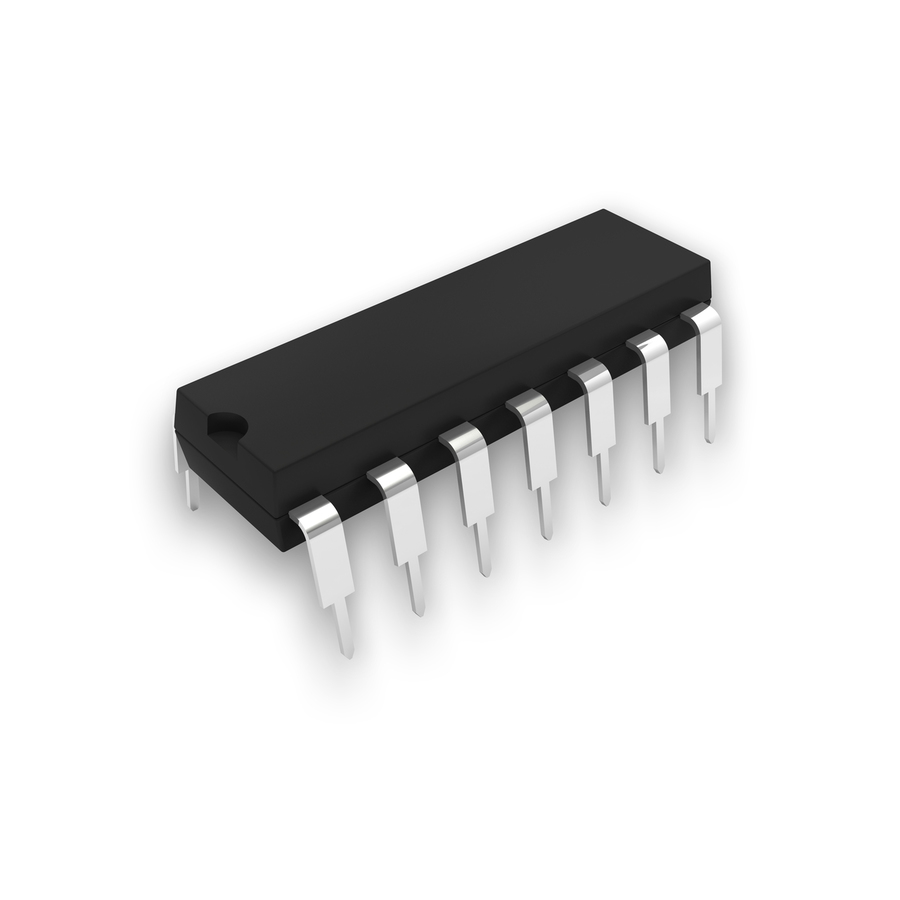

74LS86 Quad 2-in EX-OR Gate IC
74LS86 Quad 2-in EX-OR Gate IC

CAT. No. ZS5086

74LS86 Quad 2-in EX-OR Gate IC
product image thumb

74LS86 Quad 2-in EX-OR Gate IC

$1.65
Type Pins Description74LS86 14 Quad 2 input exclusive OR gate...

Please call (02) 4782 6943

Description

Type Pins Description
74LS86 14 Quad 2 input exclusive OR gate

    Specifications

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.002l
    Packaged Height
    		 1cm

    Integrated Circuit (IC)

    IC Static Sensitive
    IC Pin Count
    		 14 units
    IC op amp
    IC supply voltage
    		 5V

    Active Component

    Active marking code type
    		 Printed
    Active mount type
    		 Through Hole
    Active number of legs
    		 14 count
    max temperature
    		 70°C
    component package
    		 DIL
    Active case colour
    		 black
    Active connector type
    		 Solder Legs

    Downloads

    ZS5086-dataSheetMain.pdf
