MJE2955 PNP Transistor
MJE2955 PNP Transistor

CAT. No. ZT2275

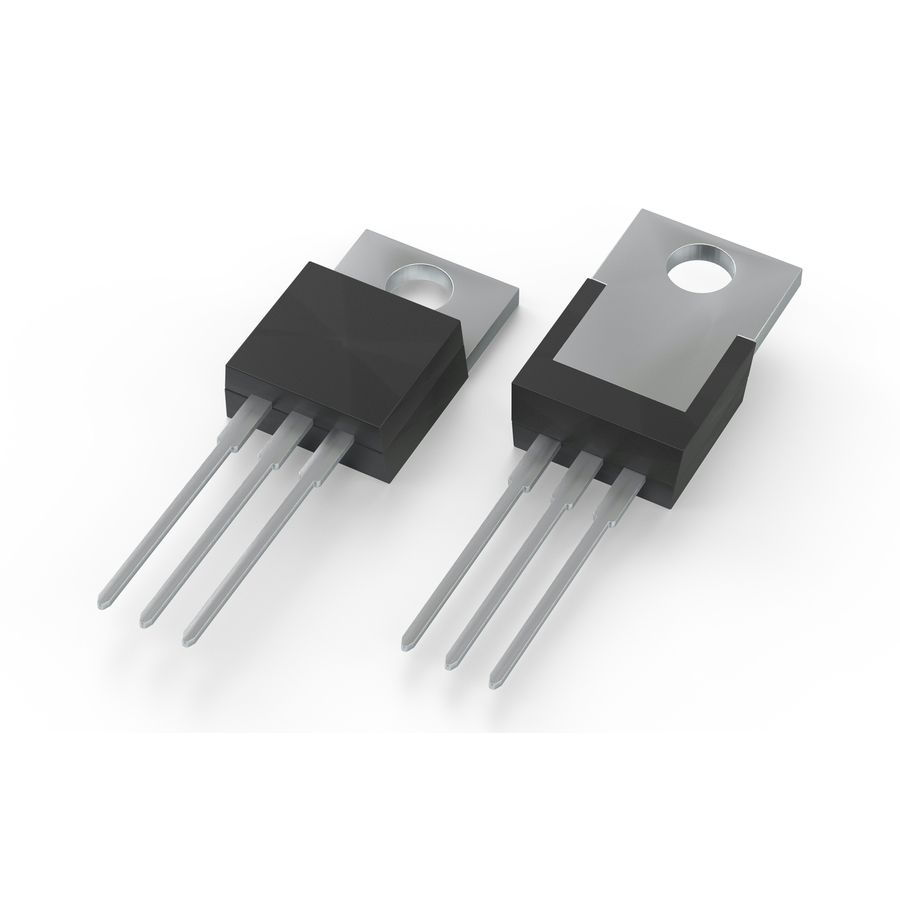

MJE2955 PNP Transistor
product image thumb

MJE2955 PNP Transistor

$3.45
Silicon Type Mat Case Diss Vcb Ic Hfe Hfe @25C BiasMJE2955 PNP TO-220 90W 70V 10A 20/70 4A...

Please call (02) 4782 6943

Description

Silicon Type Black Case Diss Vcb Ic Hfe Hfe @25C Bias respectively:
MJE2955 PNP TO-220 90W 70V 10A 20/70 4A

    Specifications

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.0015l
    Packaged Height
    		 0.5cm

    Active Transistors

    Type of Transformer
    		 BJT
    Transistor Maximum Power
    		 75W
    Power Dissipation at 25°C
    		 75W
    Transistor Application
    		 switching
    Transistor Package
    		 TO-220
    Transistor Polarity
    		 PNP
    Ic
    		 10A
    hFE min/max @ Ic Cont
    		 20/100
    vC
    		 70V

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 3 count
    component package
    		 DIL
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZT2275-dataSheetMain.pdf
